HOW TO INSTALL

Example Assemblies

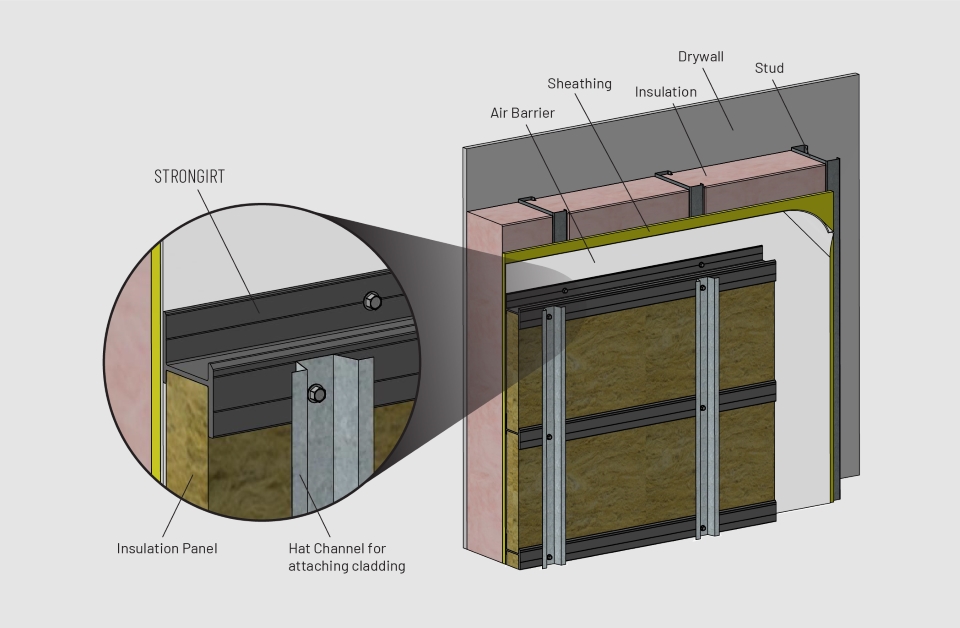

STRONGIRT Installation Assembly Horizontal

Installed Horizontally

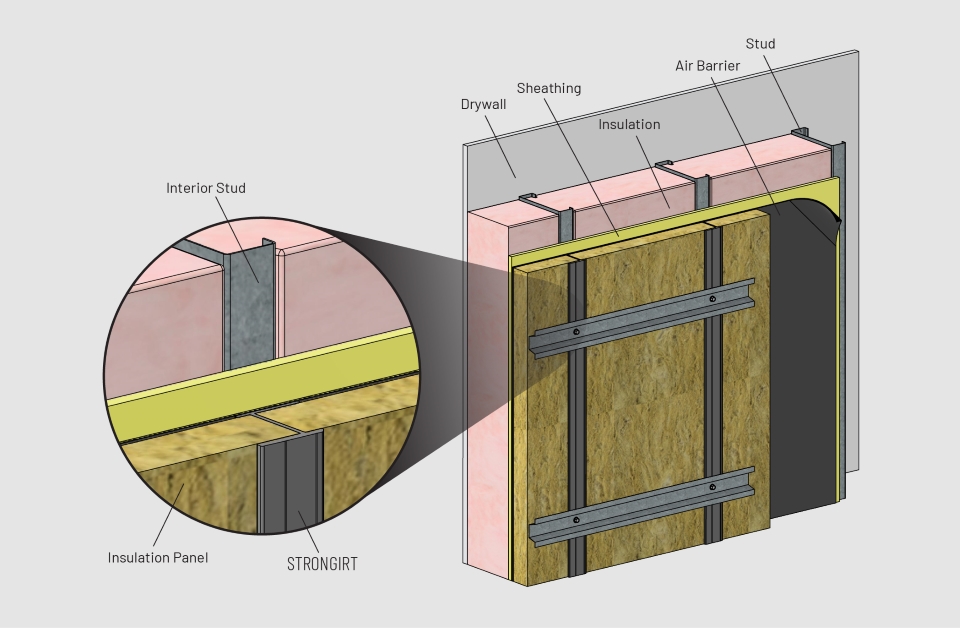

STRONGIRT Installation Assembly Vertical

Installed Vertically

Installation Manual & Details

Recommended Tools

Cutting

Miter and/or Circular Saw – Gritted or Diamond Blade (30-60 grit size)

Jigsaw – Gritted, Diamond, or Basic Metal Blade (24-32 teeth per inch)

Drilling / Fastening

Diamond or Carbine Tipped Drill Bits when drilling holes

We recommend 1/4″-14 low profile fasteners when fixing to stud walls with sheathing and 1/4″ low profile threaded and coated masonry fasteners/hilti pin when fixing to a masonry substrate.

For more details on installation, download the Installation Details above.

Accessories & Fabrication

CustomScrew

Custom Screws

For projects with very heavy cladding or atypically high wind loads, Strongwell can supply customers a custom 1-3/4” long #14 exterior hex head self-drilling screw with an integrated 1-1/4” washer, upon request, to simplify installation.

WeepHole

Weep Holes

Upon request, Strongwell can drill weep holes in the outside flange to allow for rain water to drain.

StronGirt Cross Section J-Channel

J-Channel

STRONGIRT can be fabricated to provide a non-structural J-channel or starter strip. See the Installation Detail drawings above for more information.

Request Education

Want more detailed information from our sales team? Reach out to get in contact with one of our knowledgable sales representatives and schedule an in-person or virtual lunch and learn or other training. We’re eager to share what STRONGIRT® can do.
